I.Product Description:

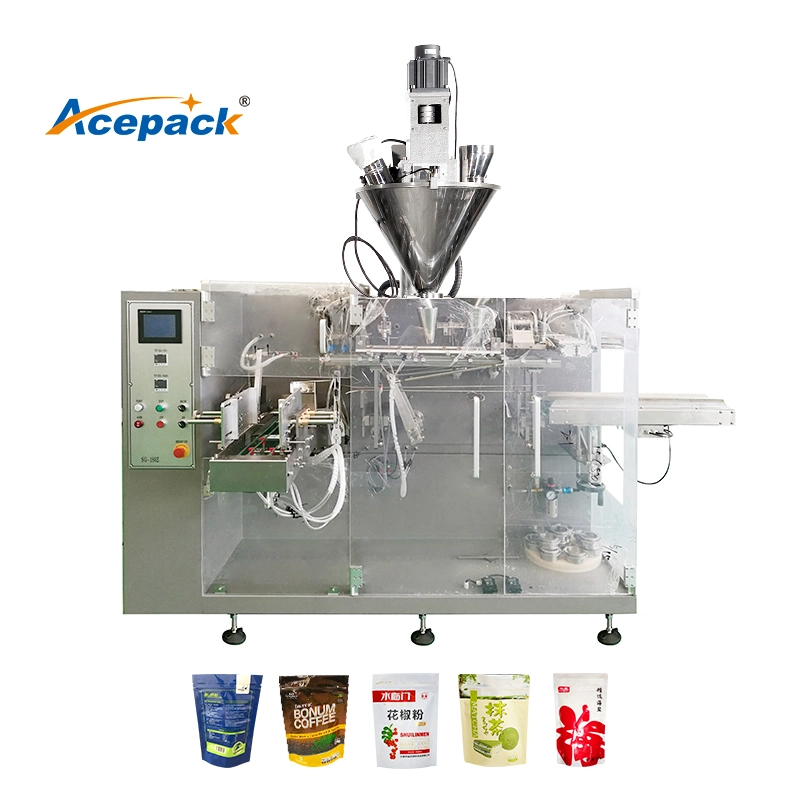

SG-180Z packaging machine can complete pouch feeding, measuring, filling, sealing, date printing, nitrogen filling, counting, finished product delivery. It is suitable for filling different products such as powder, granule, tablets, liquid, cream and other non free-flowing liquid when equipped with feeding and measuring devices.
II.Specifications:
Modle | Pouch Size | Filling Capacity | Packaging Capacity | Powder | Air Consumption | Machine Dimensions | Weight | Funcutin |
SG-180Z | 60mm*80mm(Min.) 180mm*310mm (Max.) | 1200ml | 30-60ppm | 1.8KW | 200 NL/min | 1990mm(L) 970mm(W) 1390mm(H) | 700kg | Flat Pouch, Doy pack, Zipper |
We have different types of packaging machines for different bag sizes and packaging speeds.
Other Modle:
Modle | Pouch Size | Filling Capacity | Packaging Capacity | Powder | Air Consumption | Machine Dimensions | Weight | Funcutin |
SG-210Z | 90mm*110mm(Min.) 210mm*310mm(Max.) | 1600ml | 30-60ppm | 2.8KW | 250NL/min | 2700mm(L) 970mm(W) 1400mm(H) | 900kg | Flat Pouch, Doy pack, Zipper |
SG-240Z | 100mm*120mm(Min.) 240mm*320mm(Max.) | 2000ml | 30-60ppm | 3.4kw | 450NL/min | 3100mm(L) 1010mm(W) 1400mm(H) | 1800kg | Flat Pouch, Doy pack, Zipper |
SG-280Z | 90mm*120mm(Min.) 280mm*400mm(Max.) | 3000ml | 30-60ppm | 5.5KW | 450NL/min | 4100mm(L) 1020mm(W) 1500mm(H) | 2000kg | Flat Pouch, Doy pack, Zipper |
SG-320Z | 140mm*180mm(Min.) 320mm*410mm(Max.) | 4000ml | 5-15ppm | 2.5KW | 350NL/min | 1800mm(L) 600mm(W) 1450mm(H) | 800kg | Flat Pouch, Doy pack, Zipper |
The filling system is just for your reference. We will offer you best solution according to your product mobility, viscosity, density, volume, dimensions etc.
A. Powder Packing Solution
Servo Screw Auger Filler is specialized for powder filling such as nutrients powder, seasoning powder, flour, medicinal powder etc.
B. Liquid Packing Solution
Piston Pump Filler is specialized for liquid filling such as water, juice, laundry detergent, ketchup etc.
C. Solid Packing Solution
Combination multi-head weigher is specialized for solid filling such as candy, nuts, pasta, dried fruit and vegetable etc.
D. Granule Packing Solution
Volumetric Cup Filler is specialized for granule filling such as chemical, beans, salt, seasonings etc.
E. More Packing Solution
For more solution, welcome to contact us.

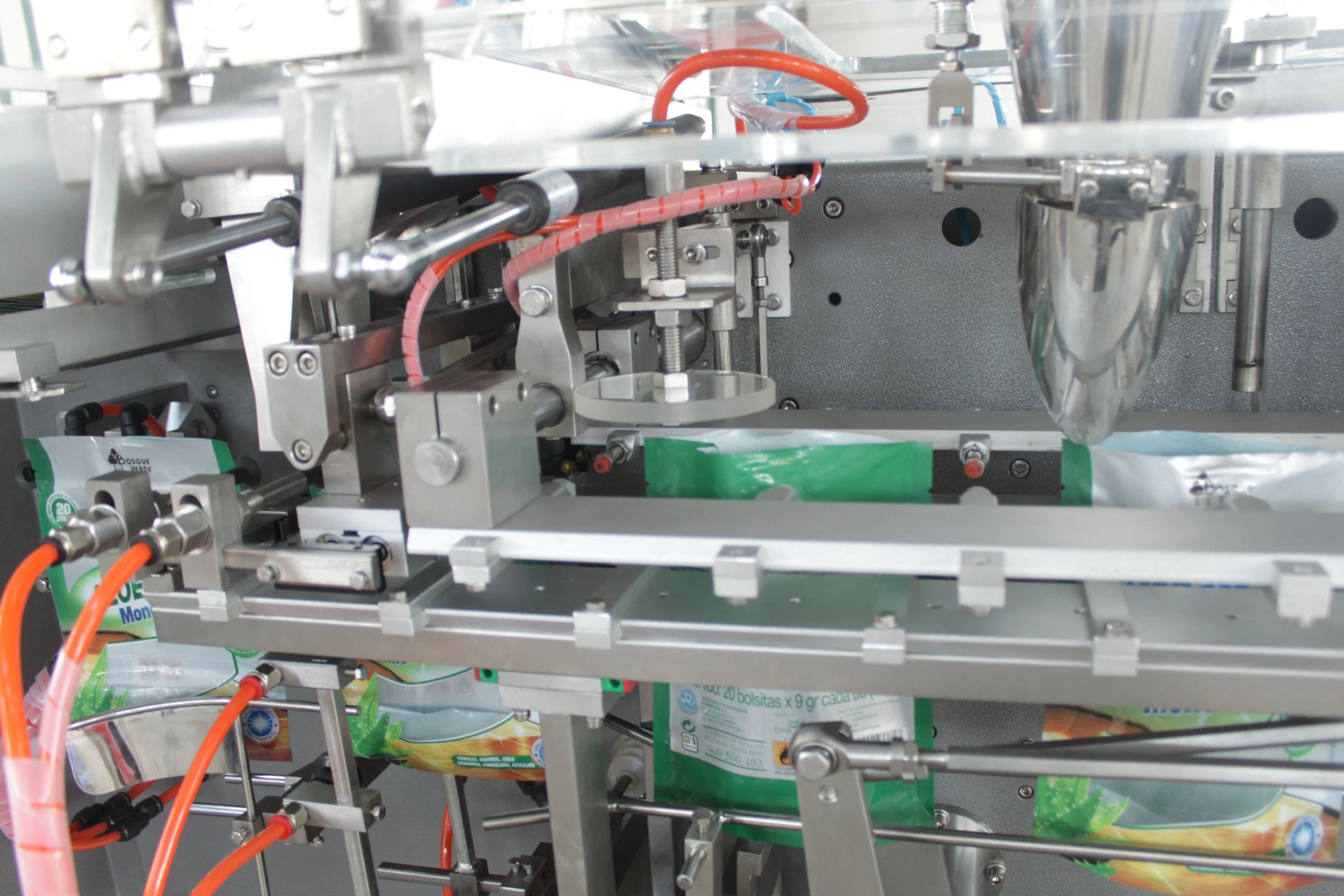

III.Packing Process
1. Premade Pouch Convryer 2. Fit-Out Pouch -Picking Unit 3. Zipper Opening 4. Pouch Opening 5. Air Flushing 6. First Filling 7. Second Filling 8. Top Seal I 9. Top Seal II 10. Finished Product 11. Outlet
IV.Our Advantages:
V.Our Certificate
We have always been convinced that only strict quality control, excellent process management do provide client more reliable quality, longer service life and more favorable price. Acepack research on ISO 9001 Quality Management System since the establishment. With the company's development and the scale expansion, now our company's supply chain system have full implementation of ERP management, combined with PDM system and OA, CRM system, our company realized enterprise informationization construction.
Till now, our company has obtained 17 invention patents, 55 utility model and design patents. There are 4 invetion patents and 8 utility model patents under application.
VI.Our Service
VII.Customer &Exhibition
Acepack's machinery has been exported to more than 50 countries and regions.
Our customers are from different industries such as food & beverage, pharmaceutical, cosmetics and personal care, etc. We have built long-term cooperation with many of those leading brands with our service.
VIII.Our Company
Shanghai Acepack Intelligent Technology CO., LTD.(Shanghai Oushuo Packaging Machinery Co.,Ltd) is a non-governmental joint stock enterprise that is dedicated to design and distribution services for horizontal fully automatic packaging machinery and fully automatic filling machinery. Oriented towards market demands on diversity of product packaging and the scope of packaging service, the company utilizes advanced design concept and technology from Europe. The product lines cover a variety of sectors including foodstuff, daily chemicals, agricultural chemicals, petrochemicals, medicine etc.
Shanghai Acepack Intelligent Technology CO., LTD. adheres to the long-term development strategy of becoming a global packaging system provider and it follows the marketing strategy of consolidating technological innovation from time to time. Under the business tenet of "customer's need is our pursuit", Shanghai Acepack carries forward the concept of "based on top quality and services" and is providing you with excellent solutions thanks to latest design philosophy and experience in packaging industry.
FAQ:
1. Are you manufacturer or trading company?
We are manufacturer. Our factory is located in Shanghai, warmly welcome to visit us.
2. How far is your factory from the airport?
Our factory is only 1 hour from Shanghai Pudong International Airport (PVC) and Shanghai Hongqiao Airport. We can pick you up from the airport.
3. Can you pick me up from my hotel in the downtown of Shanghai?
Yes, sure.
4. What kind of bags can your packing machine pack?
Our packing machine can pack doypack( stand up pouch) and sachet( flat bag). Optional function includes adding zipper, spout, making shaped pouch, etc.
5. What product can your packing machine pack?
Our packing machine can pack different types of product, such as powder, granule and liquid. Also our machine can pack irregular product.
6. What is the packing capacity( speed) of your machine?
We have simplex machine(30-80 ppm), duplex machine(60-160 ppm), triplex machine(90-240 ppm) and quadruplex machine(120-320 ppm).
7. What kind of payment do you accept?
We accept bank transfer and letter of credit. For other payment, please check with us.
8. How long is the delivery time?
It depends on which model you order. Standard machine commonly is 30-60 days. Customized machine need longer time.
